| MOQ: | 1セット/セット |
| 価格: | US $ 5000 ~13600 1 Set/Sets |
| 標準パッケージ: | プラスチック/木製のケースの梱包は,機械のサイズによって異なります. |
| 配達期間: | 90 日 |
| 決済方法: | T/T |
| 供給能力: | 1セット/セット 15~35日ごとに |
GENUO has rich production experience and technology in shearing cutting machines,we began to produce the simplest hydraulic metal sheet cutter many years ago, and now we provide hydraulic metal cutting machines manufactured in our world-class manufacturing facilities. Through continuous innovation and solution orientation, our existing shears around the world have made some suggested adjustments.Both swing beam type and guillotine type plate shears can bring you simple and efficient sheet metal cutting.In recent years, various cutting machines for metal sheet are popular. But we have not stopped the pace of innovation. The new generation of hybrid low energy consumption and noise CNC plate shears will be one of your indispensable choices.
| Standard Equipment | Optional Equipment |
| ■ ESTUN E21S NC control | □ E200PS/ CybTouch 8/ DAC-360T CNC control |
| ■ Shilin stepping motor frequency converter | □ Sheet support system for thin sheets |
| ■ Back gauge with roll guide and ball screw | □ Energy saving main servo motor pump system |
| ■ SIEMENS main motor, Schneider electric | □ Moveable controller panel,Wireless foot pedal |
| ■ Sunny pump,Rexroth hydraulic valve | □ Hydraulic oil cooling and heating system |
| ■ EMB ferrule type pipe connector,NO.K sealing rings | □ Automatic blade gap adjustment device |
| ■ Roller bearings on the front support table | □ Front angle gauge and side gauge |
| ■ Sheet sliding system and front support arms | □ Light safety system for finger protection |
| ■ Collapsible guardrail finger protection | □ 4~20mm thickness,1.6~6M length optional |
| E21S(ESTUN) | E200PS(ESTUN) |
| Backgauge control;Control ordinary motors or inverters; Intelligent positioning;Dual programmable digital output; Workpiece count; 40 program storage, Each program has 25 steps;Unilateral positioning; Yield function; One-key backup and restore of parameters; Metric system. |
CAN bus control X axis sevo; |
| CybTouch 8 G(CYBELEC) | DAC-360T(Delem) |
| High-contrast touchscreen, with vivid colors.Simple pages, large keys, clear display with all the information the operator needs. Intuitive and user-friendly interface. Complete programming of parts in seconds.Quick set up of the machine with the EasyCut page. Contextual help and waming pop-up. |
Panel based housing;Bright LCD screen;Back / front gauge control; Retum to Sender function; Sheet support. |
Powerful frame & robust design for perfect cutting.Hardened and ground blades for long life and precise Proved and rigid design with swing beam top table Minimum deformation and optimum cutting quality with best cutting angle CE standards security.
The combination of economic and perfect cutting performance CNC controlled gap adjustment and cutting angle. Adopt friendly CNC touch screen control unit Provide flexible use for narrow or wide, thin or thick sheet metal cutting.Automatic swing up back gauge for more comfortable use.Sheet support arms Balls trarifered table and T-slot front feedings arm helps pieces cutting.Table with balls and feeding plates
| Hydraulic Holddowns | Shear Blades |
| Built-in spring structure,where the lower part with special materal gasketstoad leing trace line On aluminum alloy or other sensitive material . | High Precision Ball Screw,Made using special alloy steel according to the customer's needs: material to be cut, holes & hardening.suitable to guarantee reliability & wear resistance. The machine can be equipped with 9CrSi, 6CrW2Si and SKD-11 all steel shear blade. |
| Backgauge Motor | Fast Blade Gap Adjustment Device |
| The backgauge stopper is equipped with high-quality drive motor to run at a higher speed and stably.Optional servo motor. | Simple and quick manual adjustment, the implementation of the blade gap adjustment. |
| Siemens Main Motor | EMB Bite Type Tube Fittings |
| The powerful Siemens motor provides stable shear force guarantee the machine service life, and low noise in work. | Using galvanized cold drawn pipe and EMB ferrule type pipe joint.Reduce the risk of oil leakage by 50% compared with most machines. |
| Rexroth Hydraulic Valve | Electrical System |
| The BOSCH (Rexroth) integrated hydraulic system is compact. Adopts electro-hydraulic proportional pressure valve,and the whole process pressure can be programmed and controlled to ensure machine stable . | Our machine adopt Schneider electrical components. The high quality electric parts can make the machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world. |
|
Front Worktable
- Ball Transfer Table |
Worktable with ball to decrease the friction and the scratch of sheet plate when feeding . |
|
Stable Back Gauge
- Fast and high accuracy |
The unique and novel ball screw linear guide structure back-gauge ensures high positioning accuracy. Adjustable beam guiding rule and synchronous transmission structure, stable and reliable . |
| Model | Shear Thickness | Max Cutting Length | Angle Range | Backgauge Stroke | Main Power | Approx Weight | Dimension L*W*H |
| Type | ( Mm ) | ( Mm ) | ( ° ) | ( Mm ) | ( Kw ) | ( Kg ) | ( Mm ) |
| HSB 4x2500 | 0.5-4 | 2500 | 1°30‘ | 20 - 600 | 5.5 | 3500 | 3300*1610*1620 |
| HSB 4x3200 | 0.5-4 | 3200 | 1°30‘ | 20 - 600 | 5.5 | 4500 | 3840*1610*1620 |
| HSB 4x4000 | 0.5-4 | 4000 | 1°30‘ | 20 - 600 | 5.5 | 6500 | 4600*1700*1700 |
| HSB 6x2500 | 0.5-6 | 2500 | 1°30‘ | 20 - 600 | 7.5 | 5000 | 3400*1610*1620 |
| HSB 6x3200 | 0.5-6 | 3200 | 1°30‘ | 20 - 600 | 7.5 | 6000 | 3840*1610*1620 |
| HSB 6x4000 | 0.5-6 | 4000 | 1°30‘ | 20 - 600 | 7.5 | 8200 | 4620*1750*1700 |
| HSB 6x6000 | 0.5-6 | 6000 | 1°30‘ | 20 - 600 | 11 | 16500 | 6480*2100*2300 |
| HSB 8x2500 | 0.5-8 | 2500 | 1°30‘ | 20 - 600 | 7.5 | 6000 | 3400*1700*1700 |
| HSB 8x3200 | 0.5-8 | 3200 | 1°30‘ | 20 - 600 | 7.5 | 7200 | 3860*1700*1700 |

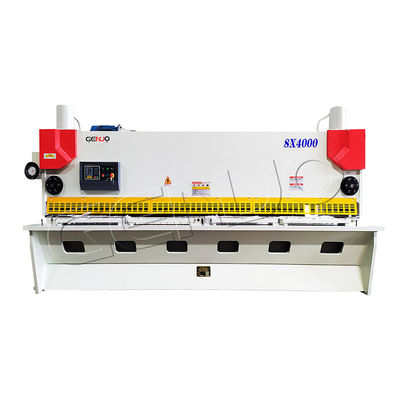

| HSB 8x4000 | 0.5-8 | 4000 | 2° | 20 - 600 | 7.5 | 8800 | 5200*1700*1950 |
| HSB 8x6000 | 0.5-8 | 6000 | 2° | 20 - 600 | 11 | 18000 | 6480*2100*2350 |
| HSB 10x2500 | 0.5-10 | 2500 | 2° | 20 - 600 | 11 | 7300 | 3400*1700*1700 |
| HSB 10x3200 | 0.5-10 | 3200 | 2° | 20 - 600 | 11 | 8000 | 3860*1700*1700 |
| HSB 10x4000 | 0.5-10 | 4000 | 2° | 20 - 600 | 11 | 12050 | 4650*2100*2000 |
| HSB 10x6000 | 0.5-10 | 6000 | 2° | 20 - 1000 | 15 | 24000 | 6500*2100*2300 |
| HSB 12x2500 | 0.5-12 | 2500 | 2° | 20 - 600 | 18.5 | 9000 | 3500*2150*2000 |
| HSB 12x3200 | 0.5-12 | 3200 | 2° | 20 - 600 | 18.5 | 10800 | 3880*2150*2000 |
| HSB 12x4000 | 0.5-12 | 4000 | 2° | 20 - 1000 | 18.5 | 13000 | 4680*2150*2000 |
| HSB 12x6000 | 0.5-12 | 6000 | 2° | 20 - 1000 | 18.5 | 29500 | 6900*2600*2700 |
| HSB 16x2500 | 0.5-16 | 2500 | 2°30‘ | 20 - 600 | 22 | 11000 | 3500*2150*2000 |
| HSB 16x3200 | 0.5-16 | 3200 | 2°30‘ | 20 - 600 | 22 | 13000 | 3880*2150*2000 |
| HSB 16x4000 | 0.5-16 | 4000 | 2°30‘ | 20 - 1000 | 22 | 16300 | 4650*2150*2000 |
| HSB 16x6000 | 0.5-16 | 6000 | 2°30‘ | 20 - 1000 | 22 | 36000 | 6900*2700*2700 |
| HSB 20x2500 | 0.5-20 | 2500 | 2°30‘ | 20 - 1000 | 22 | 15800 | 3600*2300*2500 |
| HSB 20x3200 | 0.5-20 | 3200 | 2°30‘ | 20 - 1000 | 22 | 18500 | 4150*2300*2700 |
| HSB 20x4000 | 0.5-20 | 4000 | 2°30‘ | 20 - 1000 | 30 | 21500 | 4850*2600*2700 |
